120 Pcs / Min Rotary Die Cutting Machine

Product Categories

Dongguang Dahua Carton Machinery Co.,Ltd.

Contact Now

Name: 120 Pcs Min Rotary Die Cutting Machine
Brand: Dahua
Price: 20000 USD

Brand Name : Dahua

Model Number : MQJ-2000,2400,2600

Certification : CE,ISO,SGS

Place of Origin : Hebei,China

MOQ : 1 set

Price : usd20000 - 30000 per set

Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram, D/A

Supply Ability : 30 sets per month

Delivery Time : 30-40 days

Packaging Details : plastic film wrapped,fixed inside of the container

Automatic Grade : Automatic

Speed : 120 pcs / min

Roller diameter : 480mm

Weight : 5 Tons

Max.die cutting size : Customized

Voltage : 380V / 440V / 220V 50HZ

Warranty : 1 year

Power : VFD 5.5KW

Contact Now

Automatic High Speed Pressure Free Lead Edge Feeder Corrugated Carton Rotary Die Cutting Machine

Main characteristics:

Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.
Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber.
When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.
Adopt high-quality Germany Depair rubber pad.
The roller is made of high quality steel, with a wall thickness of 50mm.
Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.
Electrically adjusted phase die-cutting position
The transmission gear is automatically sprayed and lubricated, and the service life of the gear is prolonged.

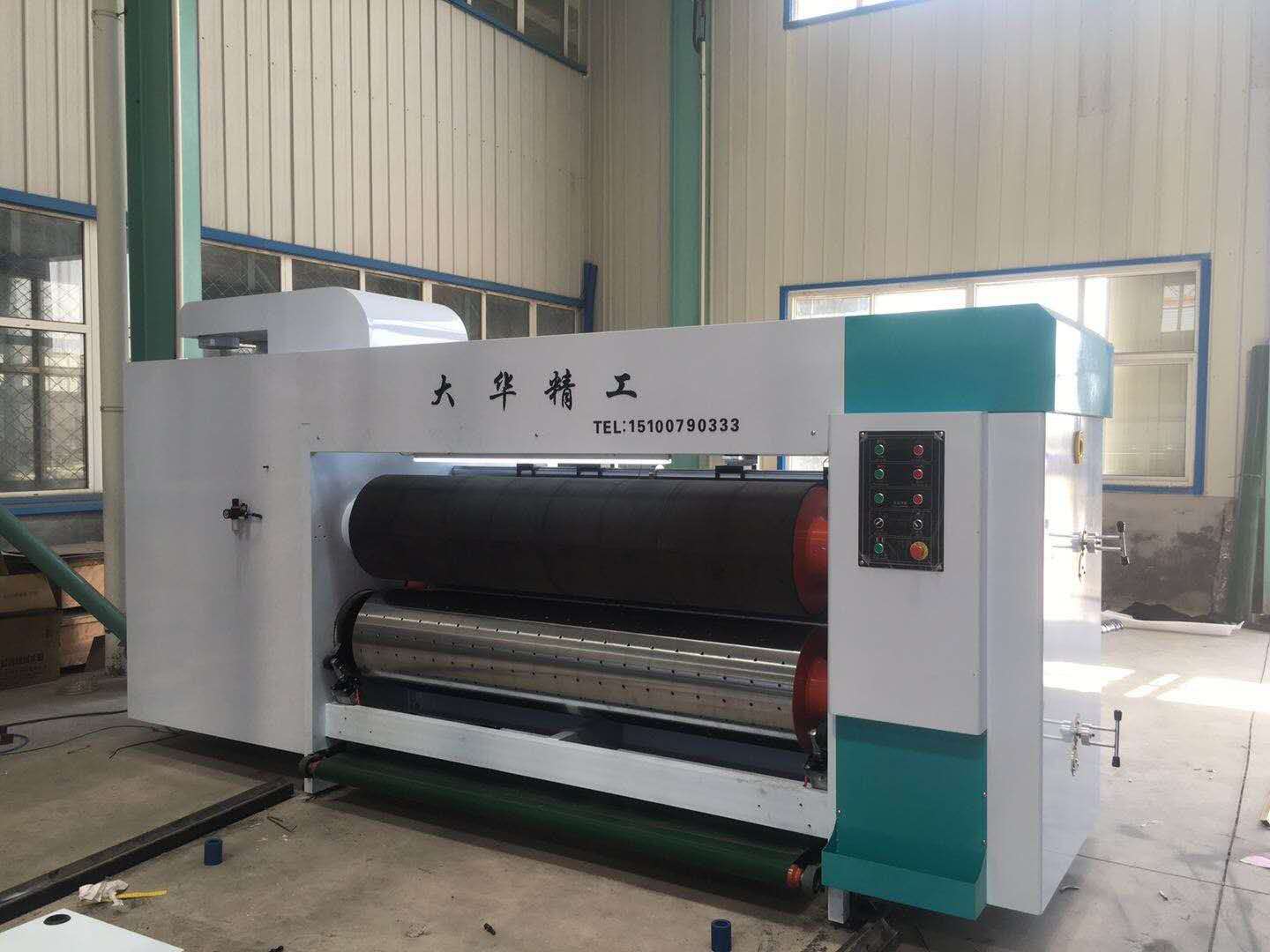

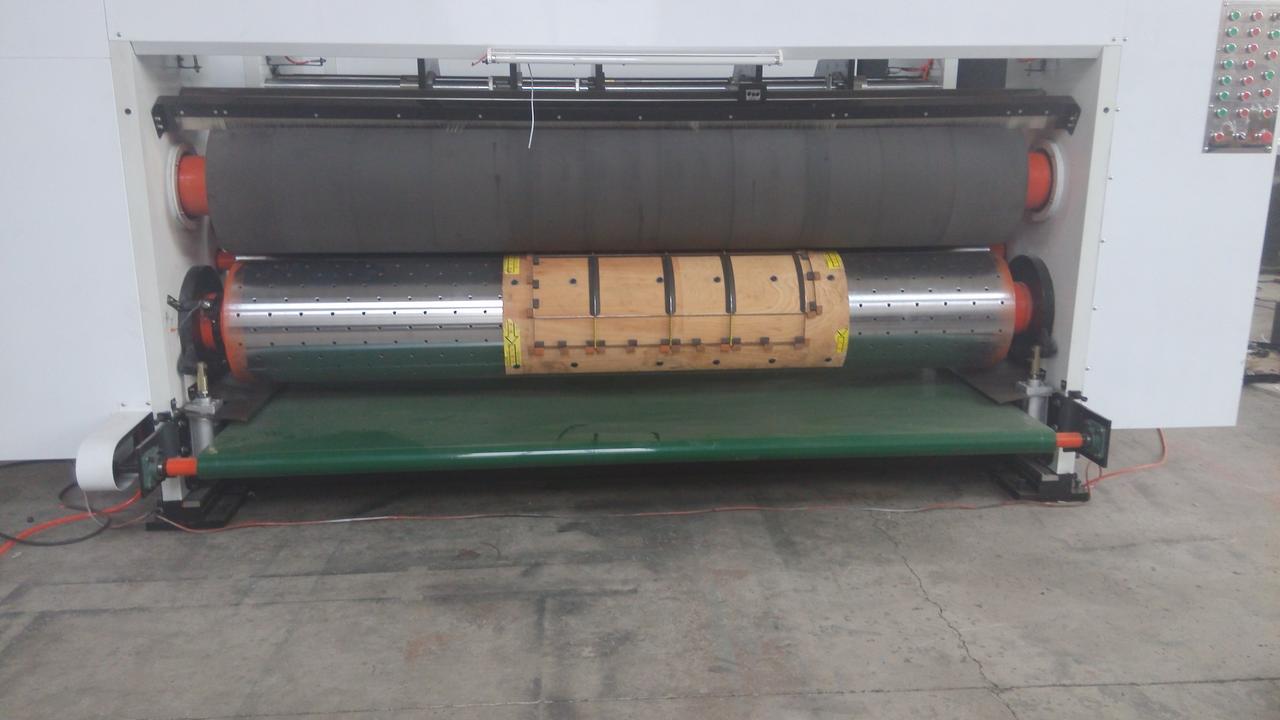

120 Pcs / Min Rotary Die Cutting Machine

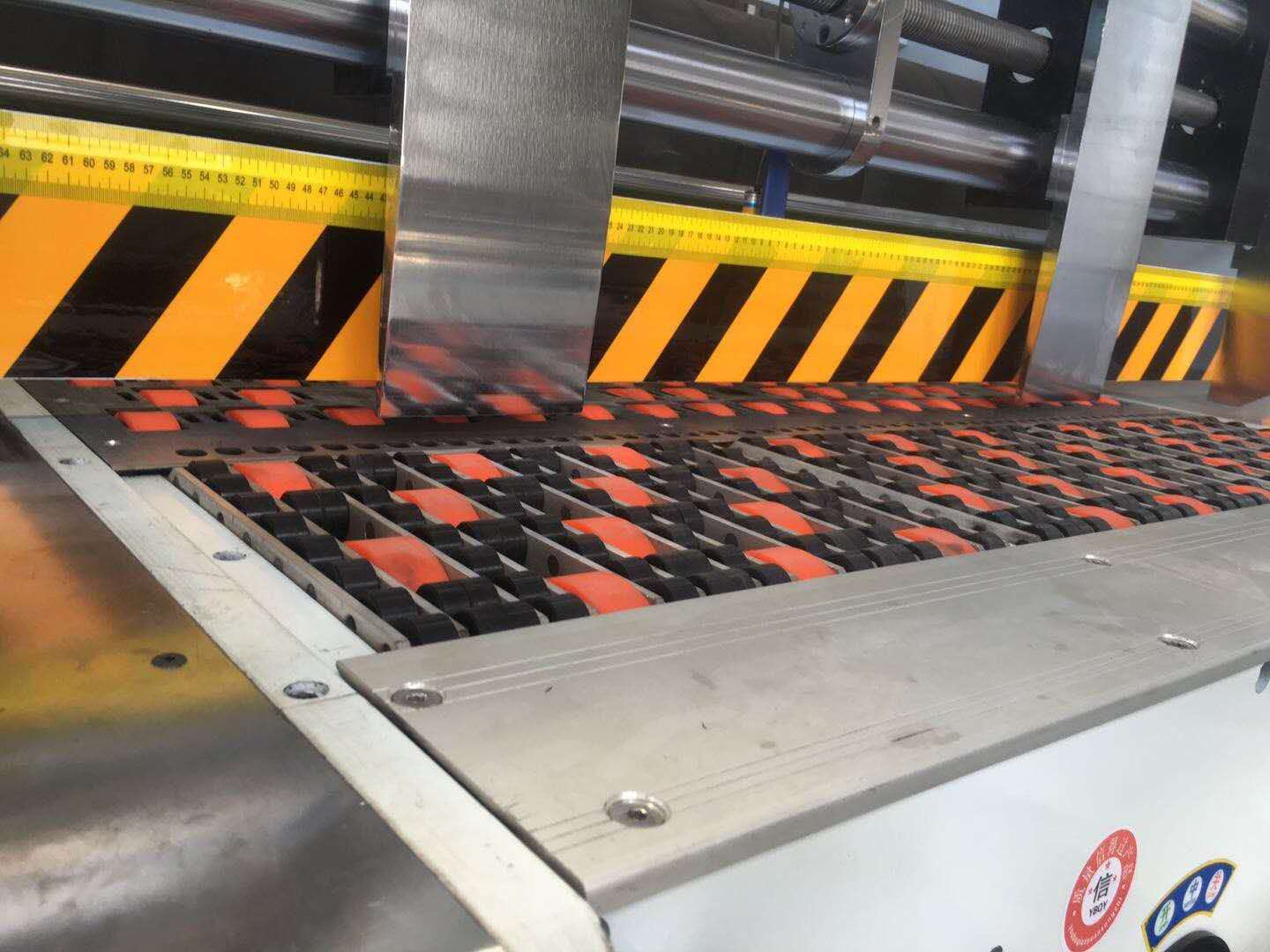

Pressure free type lead edge feeder

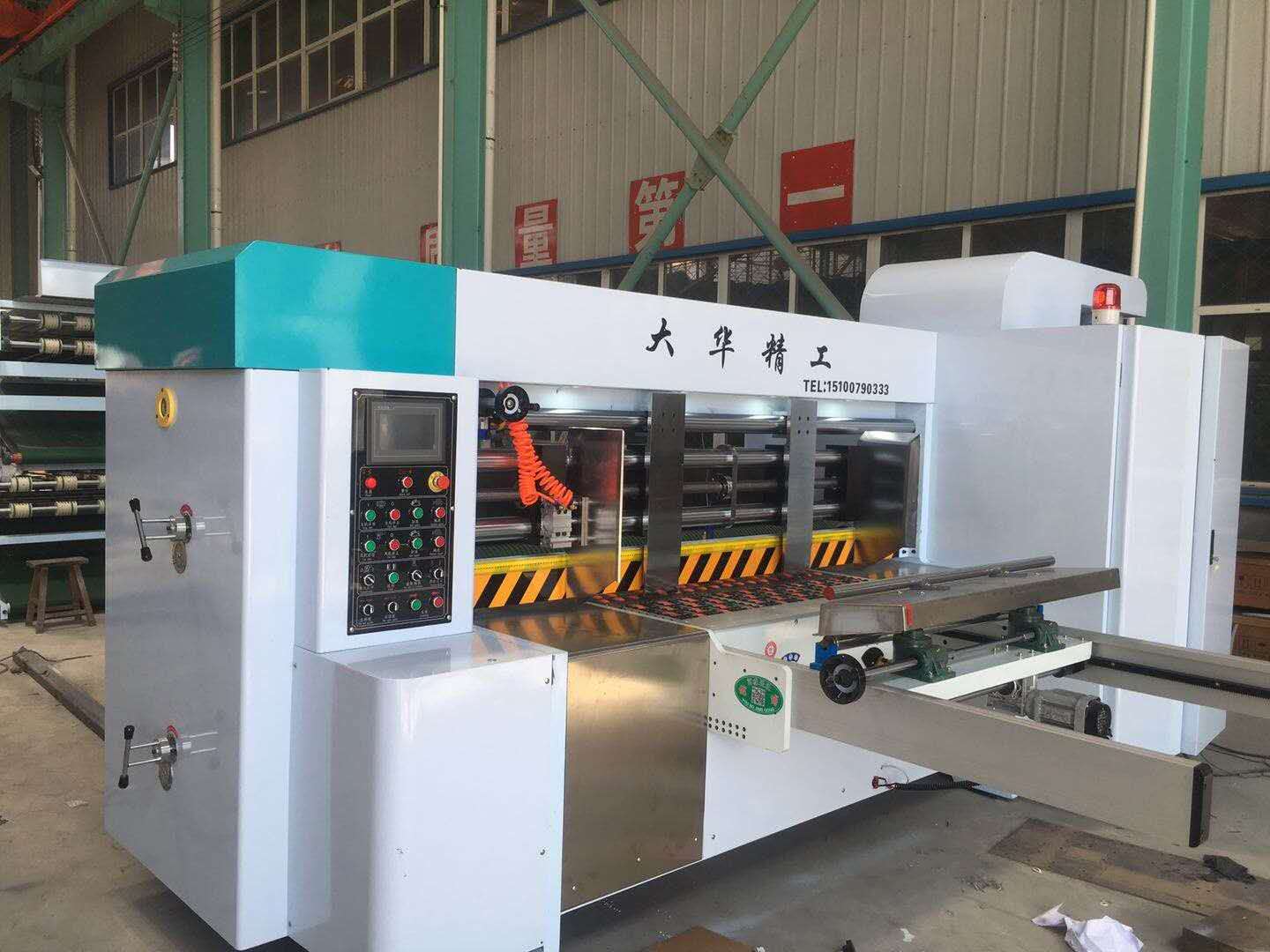

120 Pcs / Min Rotary Die Cutting Machine

Waste vibrator with side transport belt
